MARCA-EMPRESA: CHIPS ORIGINALES KEEPDATA

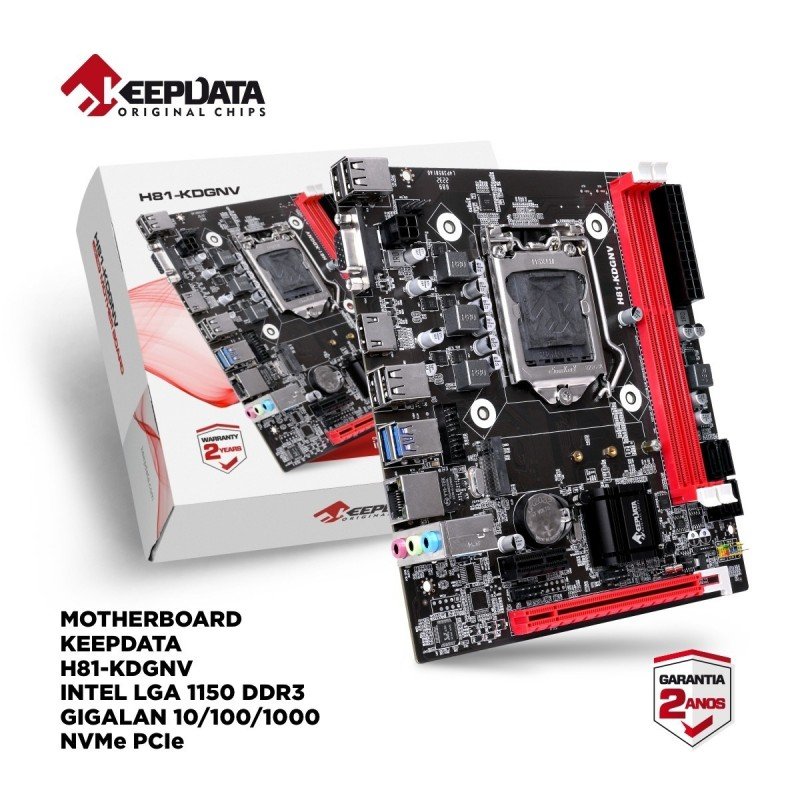

MODELO: H81-KDGNV
EAN: 7898722600621
CPU: Admite CPU Intel Core de 4.ª y 5.ª generación (Haswell) (LGA1150)
Conjunto de chips Conjunto de chips Intel H81 Express
Memoria:
2 ranuras SDRAM DDR3 de 240 pines
Memoria hasta 16GB
Admite DDR3 de doble canal 1066/1333/1600MHZ
Interfaz de E/S:
4 x USB, compatibles con USB 2.0
2 USB, compatibles con USB 3.0
1 x VGA
1 x HDMI
1 x RJ45
1 x 3-in-1 Audio port (line In/Line Out/MIC IN)
Interfaz integrada:
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x USB 2.0 pinheader (supports additional 2 USB 2.0s),
1 x USB 3.0 pinheader (Supports additional 2 USB 2.0s)
1 x F_AUDIO connector
1 x F_PANEL connector
1 x SPEAKER connector
1 x FAN connector
2 x serial SATA/6GB/S connector port
2 x serial SATA/3GB/S connector port
1 x LPC_DEBUG connector
Integrated sound:
with 6-channel HD Audio Codec onboard
provides front audio interface;
provides front Stereo mic interface;
Integrated Lan with 10/100/1000 Mbps LAN onboard
Expansion Slot:
1 x PCl Express x16 slot
1 x PCl Express x1 slot
1 x NVME-M.2 connector
Dimension: Micro-ATX architecture (17x19cm)
